ROLLER MILL
The roller mill is the main equipment of maize mill and wheat flour mill line. Depending on a pair of grinding rollers, which have differences in speed and rotate oppositely, wheat or maize endosperm is peeled from bran coat and rolled into flour via squeezing, cutting, peeling and scraping. There are two sets of independent transmission systems of feed and grinding for each roller mill. The different system has different functions during the working process.
Today we introduce the Pneumatic Roller mill by Hongdefa factory.
Separate cylinder clutch rolling mechanism, to ensure the stability of the rolling distance, Independent and precise fine adjustment mechanism of mill gap.
Core mill with a rolling chamber from the suction, not powder;
The pneumatic servo feeding system has high sensitivity and good stability
The partitioned paneling and swing-out feed module guarantee ideal
access to the feeding and grinding rolls. This makes residue-free cleaning possible.
Bearing brand:SKF bearing
Sensor: Omron
Roller material: Two different alloys with a mixing ratio allow the perfect balance to be achieved between hardness and roughness.
The horizontal roll configuration, resulting in optimum intake of material into the grinding zone, is easier for removal, installation and maintenance.
The speedy and tardy grinding rolls are driven by triple-wheel toothed belts with advantages of high power transmission, no step losses, no deflection, stable running, and low noises.
The fitted pneumatic elements, bearings and toothed belt are from the best suppliers in the world.

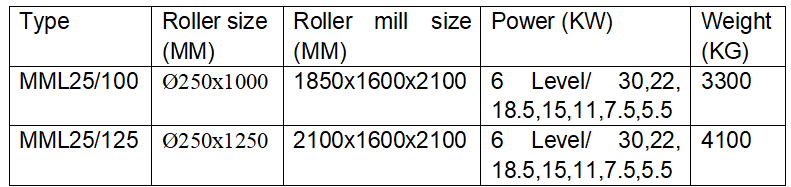

Pneumatic roller mill Kind

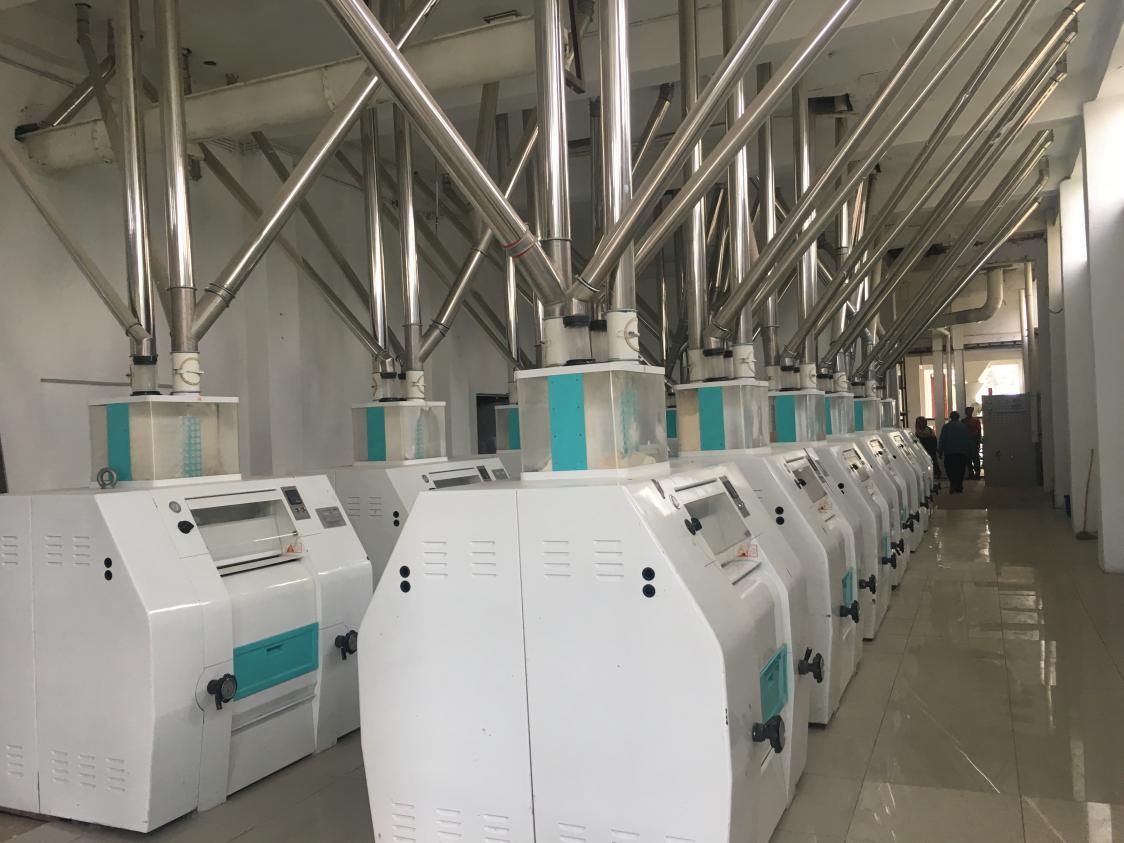

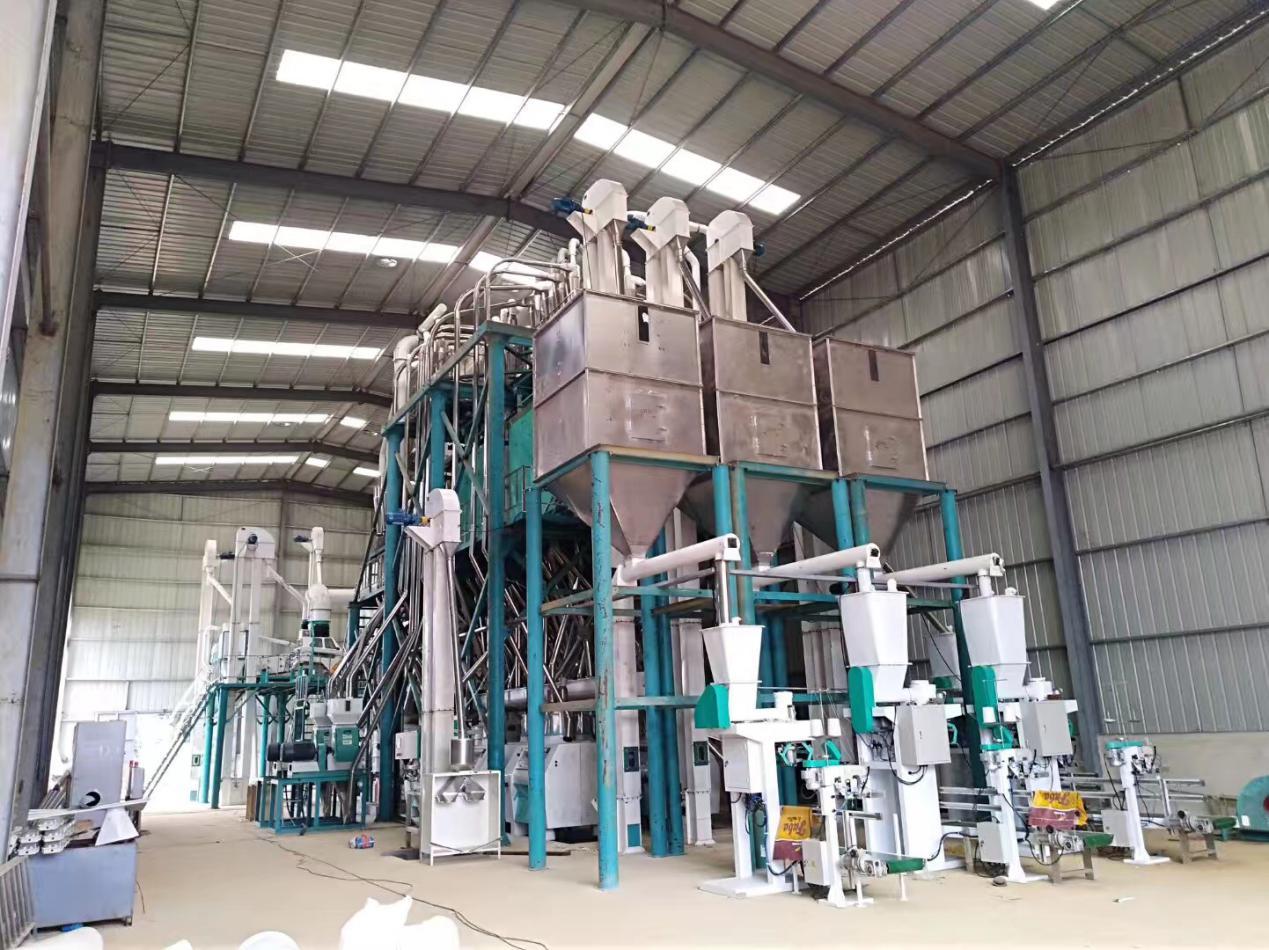

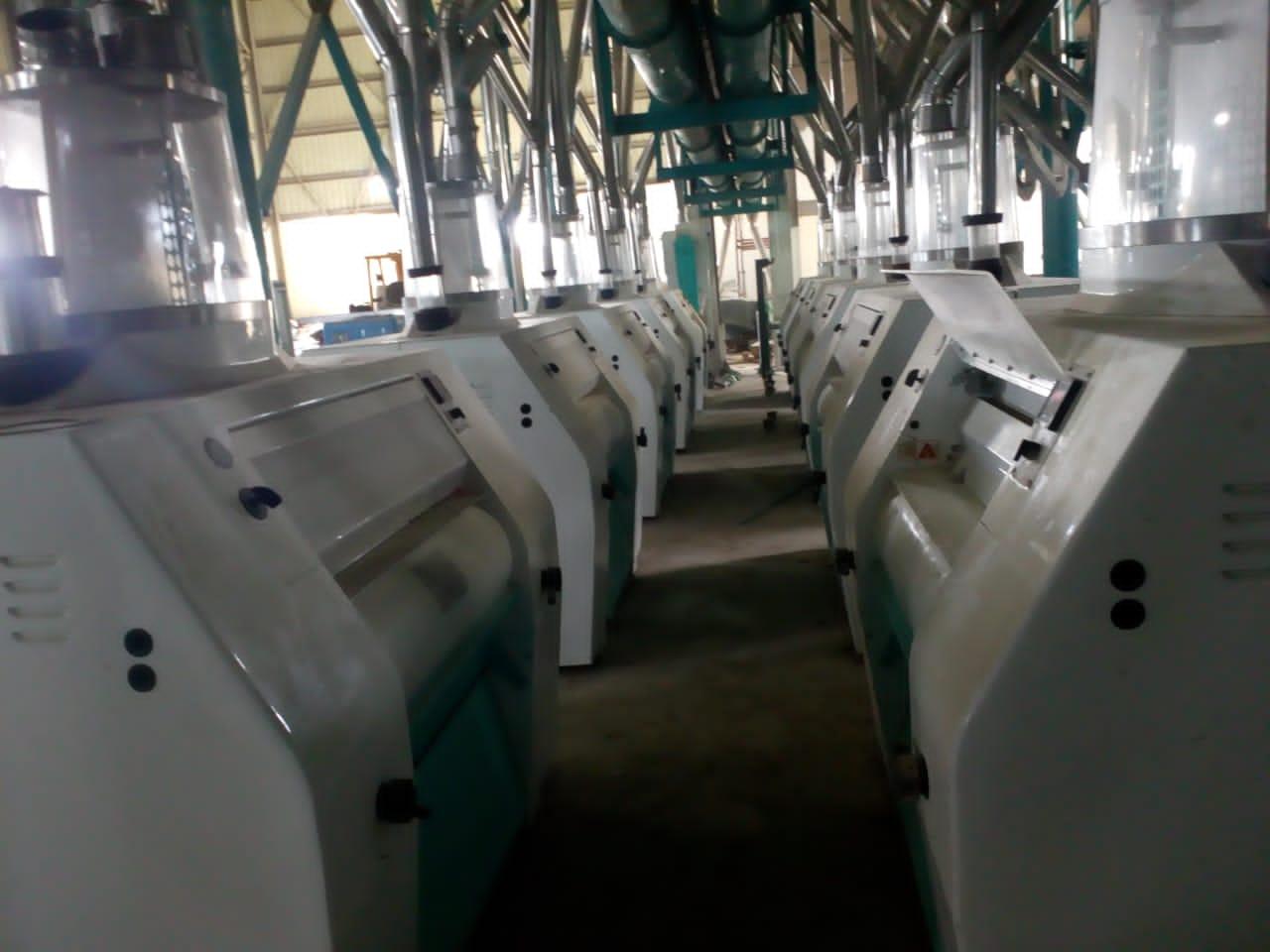

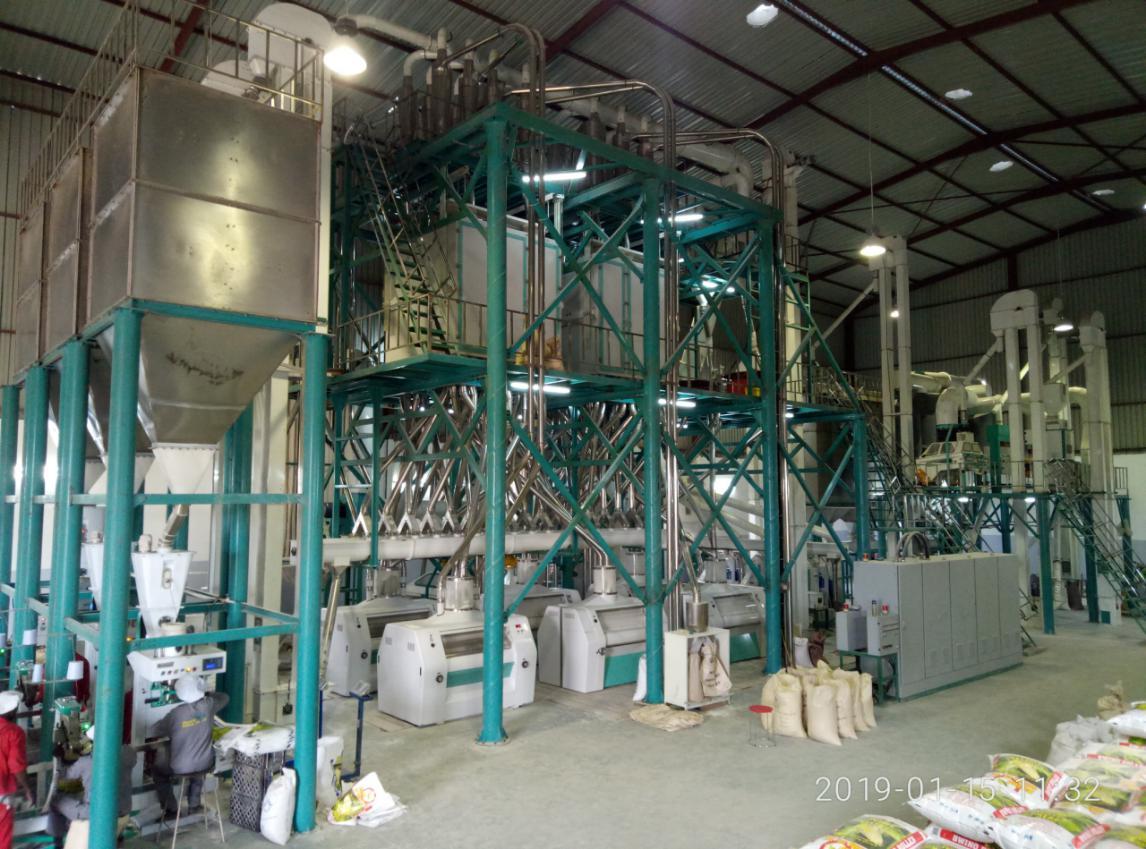

Some maize wheat mill project with Pneumatic roller mill
240T/24 Maize milling line in Zambia
240T/24H Maize mill project in Angola
150T/24H Maize mill in Malawi
150T/24H Maize flour mill line in Kenya
300T/24H Wheat flour mill in Malaysia
300T/24H Wheat mill project in Afghanistan
200T/24H Wheat milling line in Brazil
150T/24H Wheat mill in Egypt
120T/24H Wheat mill project in Ethiopia
If you need more information about the Pneumatic roller mill or the maize/corn milling machine or wheat flour mill project, please feel free to contact with us:
Email: vanisa@hdfmill.com
Whatsapp/Cell: +8613933068531
Website: www.maizewheatmill.org
Thanks
Vanisa Li
Shijiazhuang Hongdefa Machinery
